Question:

X-rays of wavelength 0.138 nm fall on a crystal whose atoms, lying in planes, are spaced 0.285 nm apart. At what angle $\phi$ (relative to the surface, Fig. 25–38) must the X-rays be directed if the first diffraction maximum is to be observed?

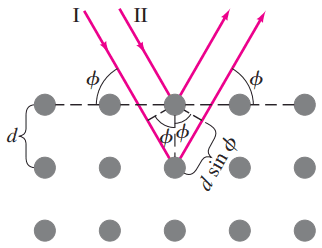

X-ray diffraction by a crystal.

Figure 25-38 X-ray diffraction by a crystal.

Source: Giancoli, Douglas C., Physics: Principles with Applications, 7th Edition, 2014.

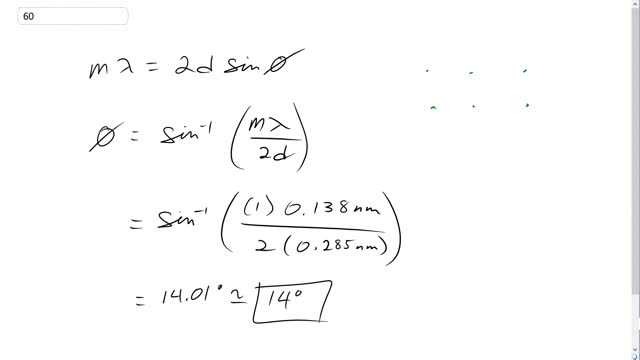

Quick Answer:

$14^\circ$

Giancoli 7th Edition, Chapter 25, Problem 60

(1:31)

Chapter 25, Problem 60 is solved.
