Question:
  1. Suppose for a conventional X-ray image that the X-ray beam consists of parallel rays. What would be the magnification of the image?
  2. Suppose, instead, that the X-rays come from a point source (as in Fig. 25–41) that is 15 cm in front of a human body which is 25 cm thick, and the film is pressed against the person’s back. Determine and discuss the range of magnifications that result.
Conventional X-ray imaging, which is essentially shadowing.

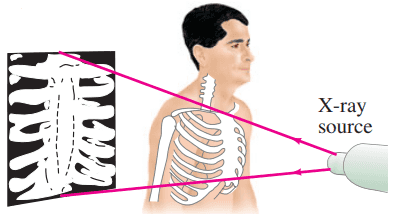

Figure 25-41 Conventional X-ray imaging, which is essentially shadowing.

Source: Giancoli, Douglas C., Physics: Principles with Applications, 7th Edition, 2014.

Quick Answer:

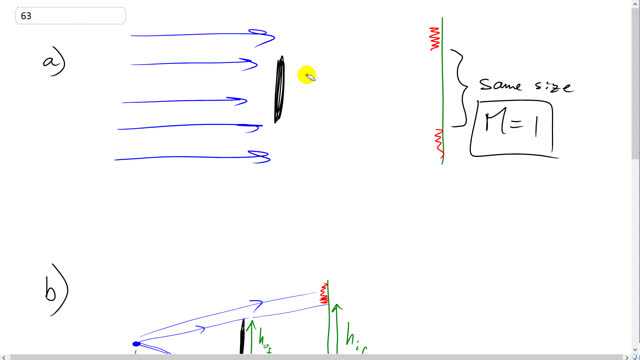

  1. $M=1$
  2. $M_{front} = 2.7, M_{back} = 1$

Giancoli 7th Edition, Chapter 25, Problem 63

(3:16)

Chapter 25, Problem 63 is solved.
