Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 16
Q

In Fig. 21–11, the moving rod has a resistance of 0.25  Ω0.25 \; \Omega and moves on rails 20.0 cm apart. The stationary U-shaped conductor has negligible resistance. When a force of 0.350 N is applied to the rod, it moves to the right at a constant speed of 1.50 m/s. What is the magnetic field?

A conducting rod is moved to the right on a U-shaped conductor in a uniform magnetic field B that points out of the page. The induced current is clockwise.

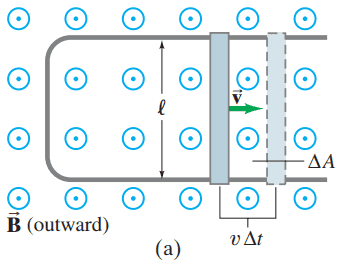

Figure 21-11 (a) A conducting rod is moved to the right on a U-shaped conductor in a uniform magnetic field B\vec{B} that points out of the page. The induced current is clockwise.
Upward force on an electron in the metal rod (moving to the right) due to B pointing out of the page; hence electrons can collect at the top of the rod, leaving + charge at the bottom.

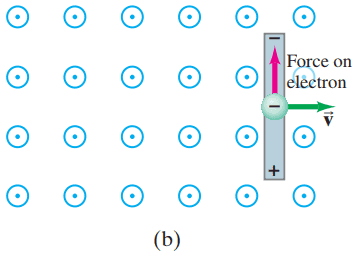

Figure 21-11 (b) Upward force on an electron in the metal rod (moving to the right) due to B\vec{B} pointing out of the page; hence electrons can collect at the top of the rod, leaving + charge at the bottom.
A
1.2 T1.2 \textrm{ T}
