Problem 20
Q

Calculate the current through each resistor in Fig. 19–50 if each resistance R=3.25 kΩR = 3.25 \textrm{ k}\Omega and V = 12.0 V. What is the potential difference between points A and B?

Problems 19 and 20.

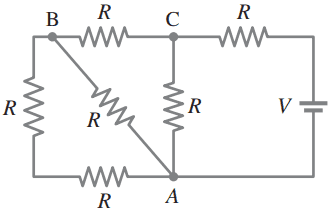

Figure 19-50.
A

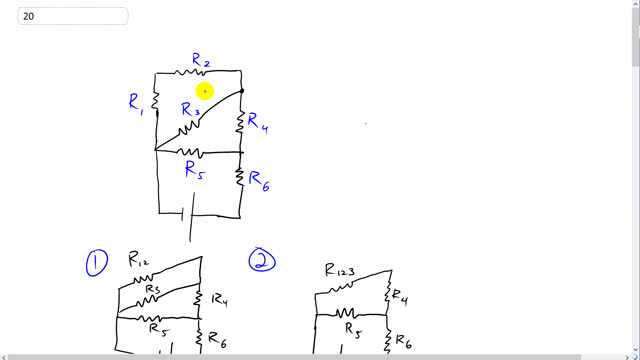

Req=13R8,I1=I2=0.284 mA, R_{eq} = \dfrac{13R}{8}, I_1 = I_2 = 0.284 \textrm{ mA, } I3=0.568 mA,  I_3 = 0.568 \textrm{ mA, }
I4=0.852 mA, I5=1.42 mA,  I_4 = 0.852 \textrm{ mA, } I_5 = 1.42 \textrm{ mA, } I6=2.27 mA,VAB=1.85 VI_6 = 2.27 \textrm{ mA}, V_{AB} = 1.85 \textrm{ V}
