Question by Giancoli, Douglas C., Physics: Principles with Applications, 7th Ed., ©2014, Reprinted by permission of Pearson Education Inc., New York.
Problem 59
Q
  1. An ammeter has a sensitivity of 35,000  Ω/V35,000 \; \Omega \textrm{/V}. What current in the galvanometer produces full-scale deflection?
  2. What is the resistance of a voltmeter on the 250-V scale if the meter sensitivity is 35,000  Ω/V35,000 \; \Omega \textrm{/V}?
A
  1. 29  μA29 \; \mu \textrm{A}
  2. 8.8 MΩ8.8 \textrm{ M}\Omega

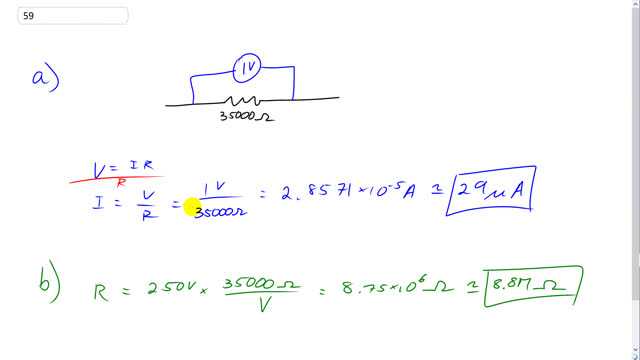

Giancoli 7th Edition, Chapter 19, Problem 59 solution video poster
Padlock

In order to watch this solution you need to have a subscription.
