Problem 28
Q

An ac voltage of 120-V rms is to be rectified. Estimate very roughly the average current in the output resistor RR (= 31 kΩ31 \textrm{ k}\Omega) for

  1. a half-wave rectifier (Fig. 29–31),
  2. a full-wave rectifier (Fig. 29–32) without capacitor.
(a) A simple (half-wave) rectifier circuit using a semiconductor diode.
Figure 29-31 (a) A simple (half-wave) rectifier circuit using a semiconductor diode.

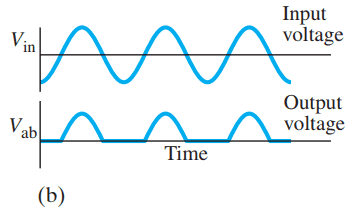

(b) AC source input voltage, and output voltage across R, as functions of time.
Figure 29-31 (b) AC source input voltage, and output voltage across R, as functions of time.

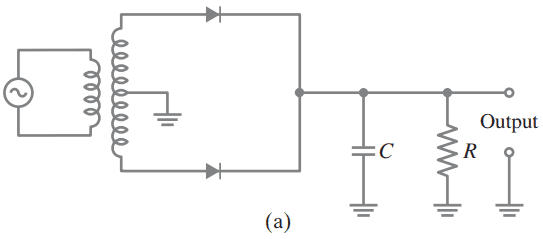

(a) Full-wave rectifier circuit (including a transformer so the magnitude of the voltage can be changed).
Figure 29-32 (a) Full-wave rectifier circuit (including a transformer so the magnitude of the voltage can be changed).

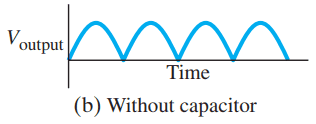

(b) Output voltage in the absence of capacitor C.
Figure 29-32 (b) Output voltage in the absence of capacitor C.

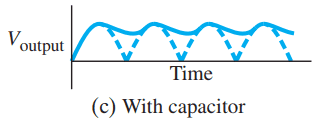

(c) Output voltage with the capacitor in the circuit.
Figure 29-32 (c) Output voltage with the capacitor in the circuit.

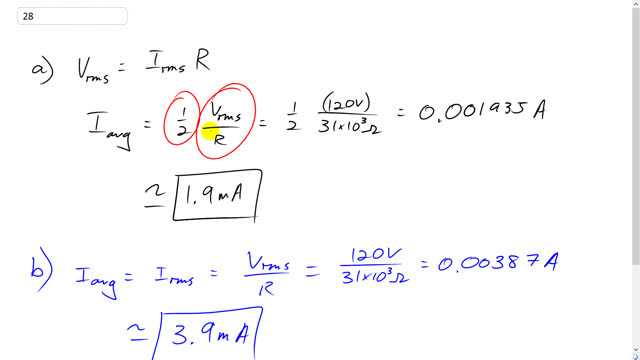

A
  1. 1.9 mA1.9 \textrm{ mA}
  2. 3.9 mA3.9 \textrm{ mA}
