Problem 32

From Fig. 29–41, write an equation for the relationship between the base current ( $I_B$ ), the collector current ( $I_C$ ), and the emitter current ( $I_E$ ), not labeled in Fig. 29–41). Assume $i_B = i_C = 0$ .

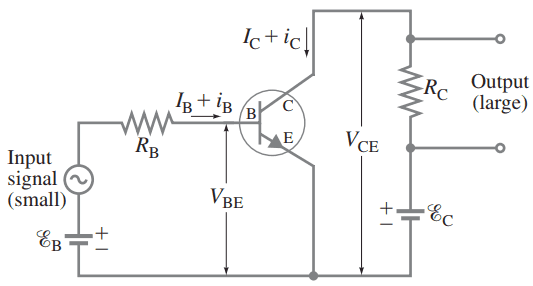

An npn transistor used as an amplifier. I_B is the current produced by E_B (in the absence of a signal), i_B is the ac signal current (= change in I_B).

Figure 29-41 An npn transistor used as an amplifier.

I_B

is the current produced by

\xi_B

(in the absence of a signal),

i_B

is the ac signal current (= change in

I_B

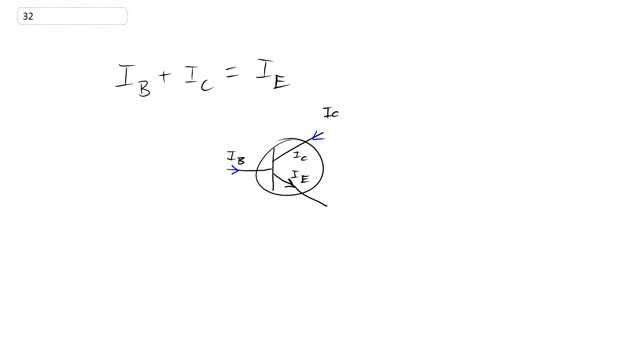

I_B + I_C = I_E

Giancoli 7th Edition, Chapter 29, Problem 32 solution video poster

In order to watch this solution you need to have a subscription.

Get Started

View sample solution
